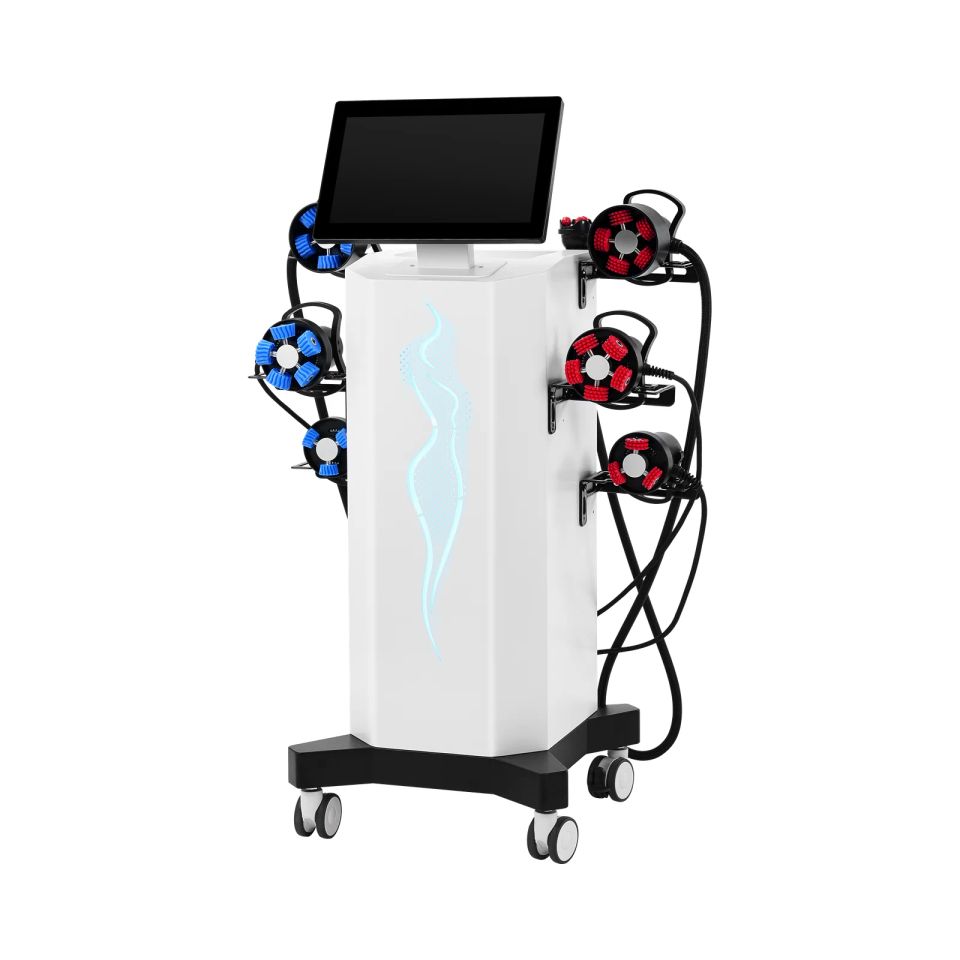

White Luxient 7-handpiece mechanical-wave and dual-vacuum body contouring machine with 15.6-inch touchscreen

Vacuum & Roller

Multi-Motion Mechanical Body Contouring Machine

Model: LX-CB-002

Configure mechanical-roller and vacuum-lift body programs from a white, 15.6-inch wide-screen platform with seven dedicated handpieces. LX-CB-002 pairs four non-vacuum body roller handpieces and one facial handpiece with two large five-roller vacuum handpieces controlled through independent D1 and D2 settings.

Dual Vacuum-Lift Channels: D1 and D2 use negative pressure to lift the contacted tissue before five-roller rotary massage, with separate Vacuum and Release controls
Five Non-Vacuum Mechanical Formats: Two large five-roller, two medium three-roller and one facial handpiece cover broad-to-precision areas
Guided Program Workflow: Body, Face, Recovery, Manual and Vacuum modes combine program selection with adjustable time, energy, light and rotation

Distributor, OEM, ODM and private-label enquiries.

On this page

Dual Vacuum-Lift Control with Layered Mechanical-Roller Coverage

The LX-CB-002 is a seven-handpiece floor-standing platform that combines five non-vacuum mechanical roller handpieces with two large five-roller vacuum handpieces. Its 15.6-inch interface brings broad body, focused body, facial and vacuum workflows together in one system.

How the Vacuum Handpieces Work — D1 and D2 first use negative pressure to draw the selected tissue into the applicator. The five-roller assembly then applies rotary massage, while separate Vacuum and Release settings let the operator adjust the suction cycle for each channel.

The non-vacuum set includes A1 Gentle Large and A2 Intensive Large five-roller handpieces, B1 Gentle Medium and B2 Intensive Medium three-roller handpieces, and the dedicated C1 facial handpiece. Each rotating star head uses 16 contact points to create rhythmic, multi-point mechanical stimulation across the selected area.

The interface separates Body, Face, Recovery, Manual and Vacuum workflows. Body mode includes Body Contouring, Anti-Cellulite, Lymphatic Drainage and Firming & Tightening programs, while the channel architecture supports single-handpiece or coordinated multi-handpiece operation.

Seven Handpieces with Two Dedicated Vacuum Channels

Two Large Vacuum 5-Roller Handpieces

D1 and D2 combine negative-pressure tissue lift with rotary massage from a five-roller assembly.

Four Non-Vacuum Body Handpieces

Two large five-roller and two medium three-roller handpieces provide gentle and intensive body formats.

15.6-Inch Program Interface

Move between Body, Face, Recovery, Manual and Vacuum modes from the wide-screen touchscreen.

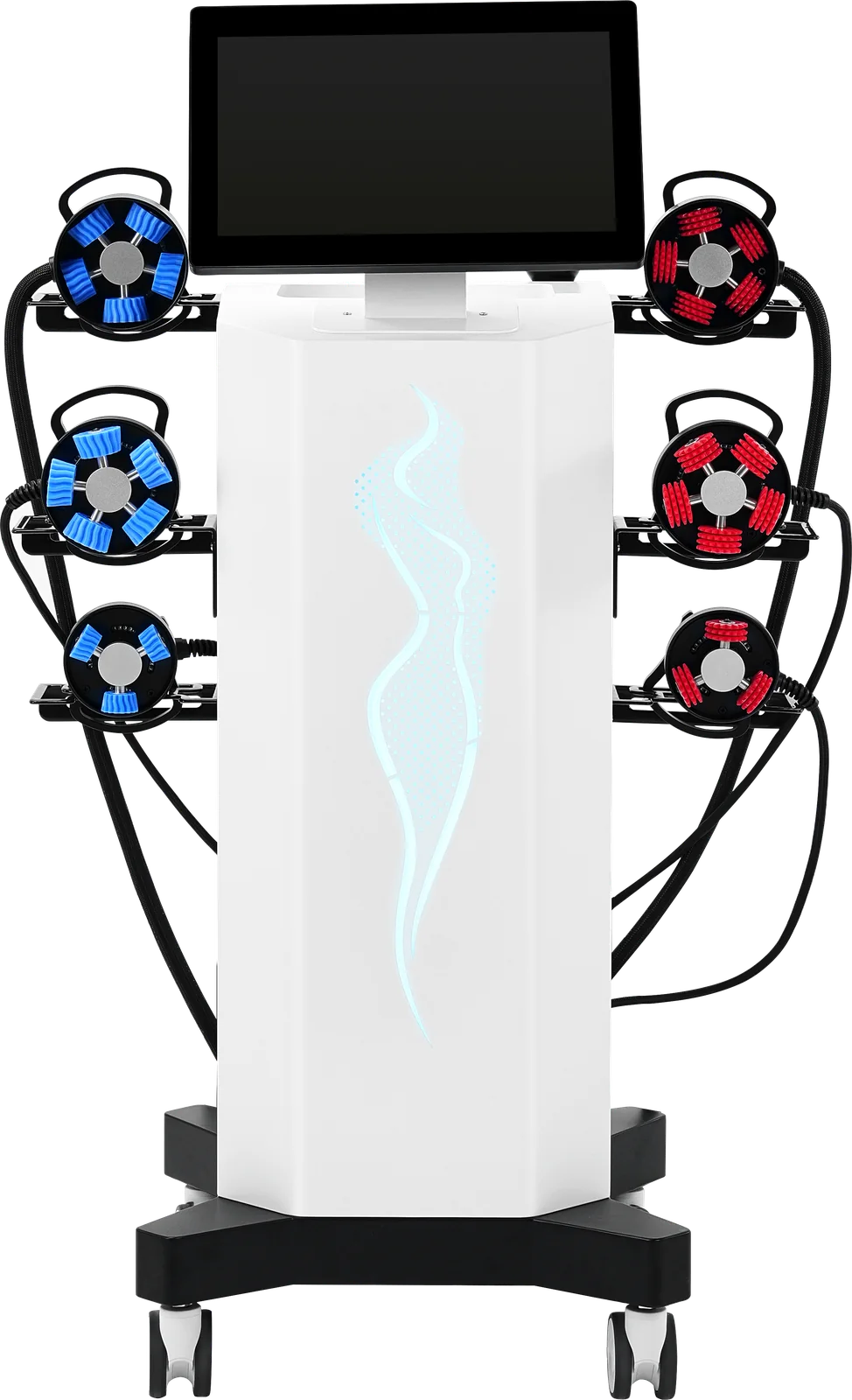

Front view of the Luxient LX-CB-002 console with six body handpieces mounted on its side holders

Independent D1 and D2 Controls

Set time, energy, light, vacuum, release and rotation direction separately for the two vacuum channels.

Dedicated C1 Facial Handpiece

Use the smaller facial handpiece for face, neck and other precision-area workflows.

One-to-Seven Handpiece Operation

Select one handpiece or coordinate multiple connected channels according to the planned professional protocol.

LX-CB-002 Body interface with four body programs, A1 A2 B1 B2 handpiece mapping and treatment controls

Guided Programs for Four Non-Vacuum Body Channels

The Body screen combines preset workflows, handpiece selection and common session controls in one wide-screen view.

Program menu — Select Body Contouring, Anti-Cellulite, Lymphatic Drainage or Firming & Tightening.
Exact channel mapping — A1 Gentle Large, A2 Intensive Large, B1 Gentle Medium and B2 Intensive Medium.
Common controls — Adjust time, energy, light brightness and CW or CCW rotation.
Workflow navigation — Move between Body, Face, Recovery, Manual and Vacuum modes.
Channel operation — Select one handpiece or coordinate multiple connected handpieces for the planned protocol.

LX-CB-002 Vacuum interface with separate D1 and D2 time, energy, light, vacuum, release and direction controls

Independent D1 and D2 Vacuum Control

The Vacuum screen gives each large five-roller vacuum handpiece its own parameter set and session controls.

Separate channels — Configure D1 and D2 independently from the same screen.
Vacuum cycle — Adjust Vacuum and Release for each selected applicator.
Rotary movement — Select CW or CCW direction, or use Auto Cycle.
Per-channel control — Start or pause either vacuum handpiece while retaining a shared Stop All command.
Integrated light — Adjust brightness and switch the selected handpiece light on or off.

Vacuum and Mechanical-Roller Programs from Face to Body

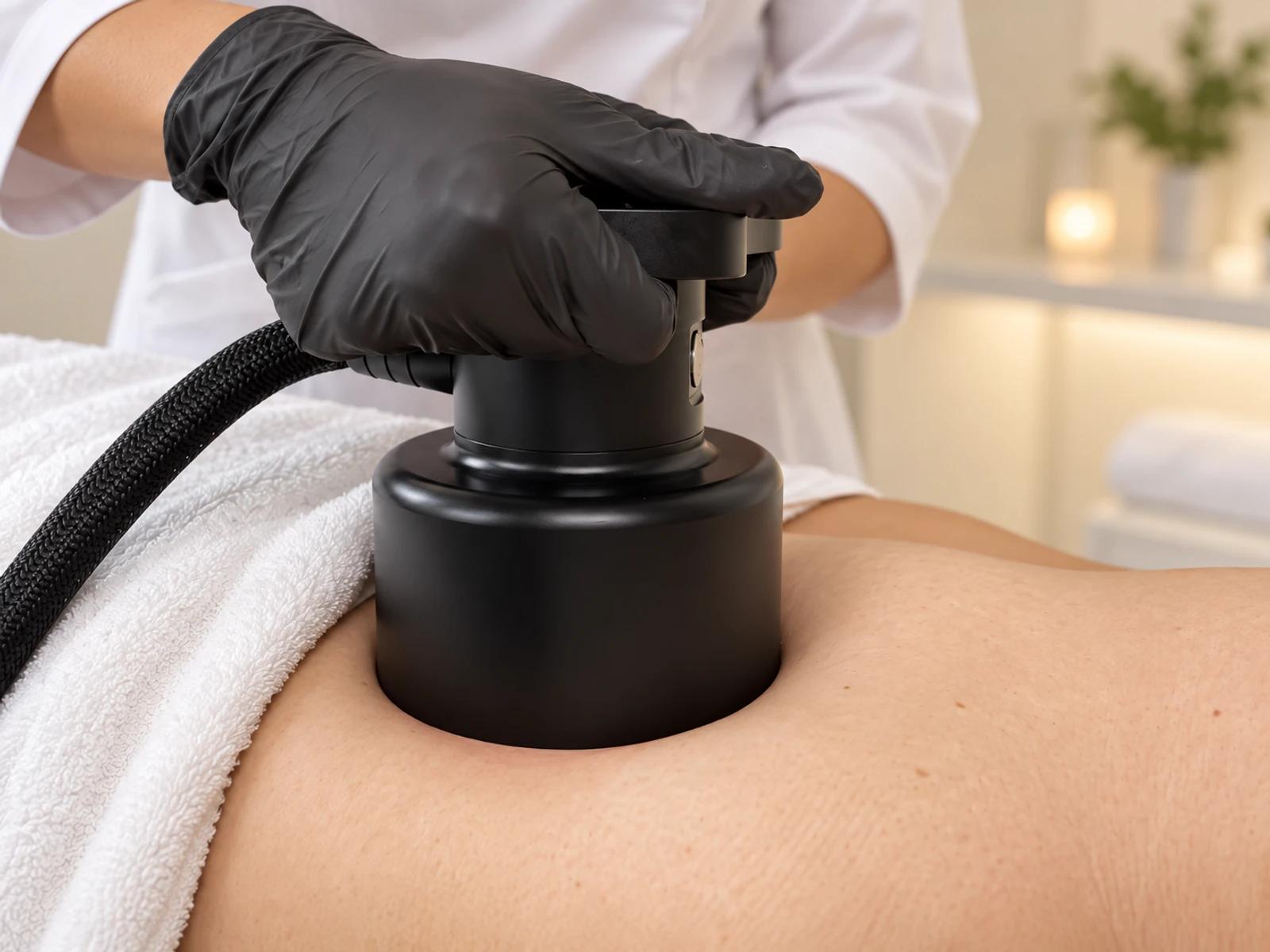

Large LX-CB-002 vacuum handpiece positioned perpendicular to the abdomen with its circular rim in full skin contact

D1 + D2 Vacuum · Two Large Five-Roller Handpieces

Dual Vacuum-Lift & Rotary Massage

Each D1 or D2 handpiece uses negative pressure to draw the selected tissue into the applicator before its five-roller assembly applies rotary massage. Vacuum and Release can be adjusted independently for the two channels.

Combines controlled tissue lift with rotary roller massage
Supports drainage, edema-reduction and tissue-mobility programs
Keeps D1 and D2 settings independently accessible on the Vacuum screen

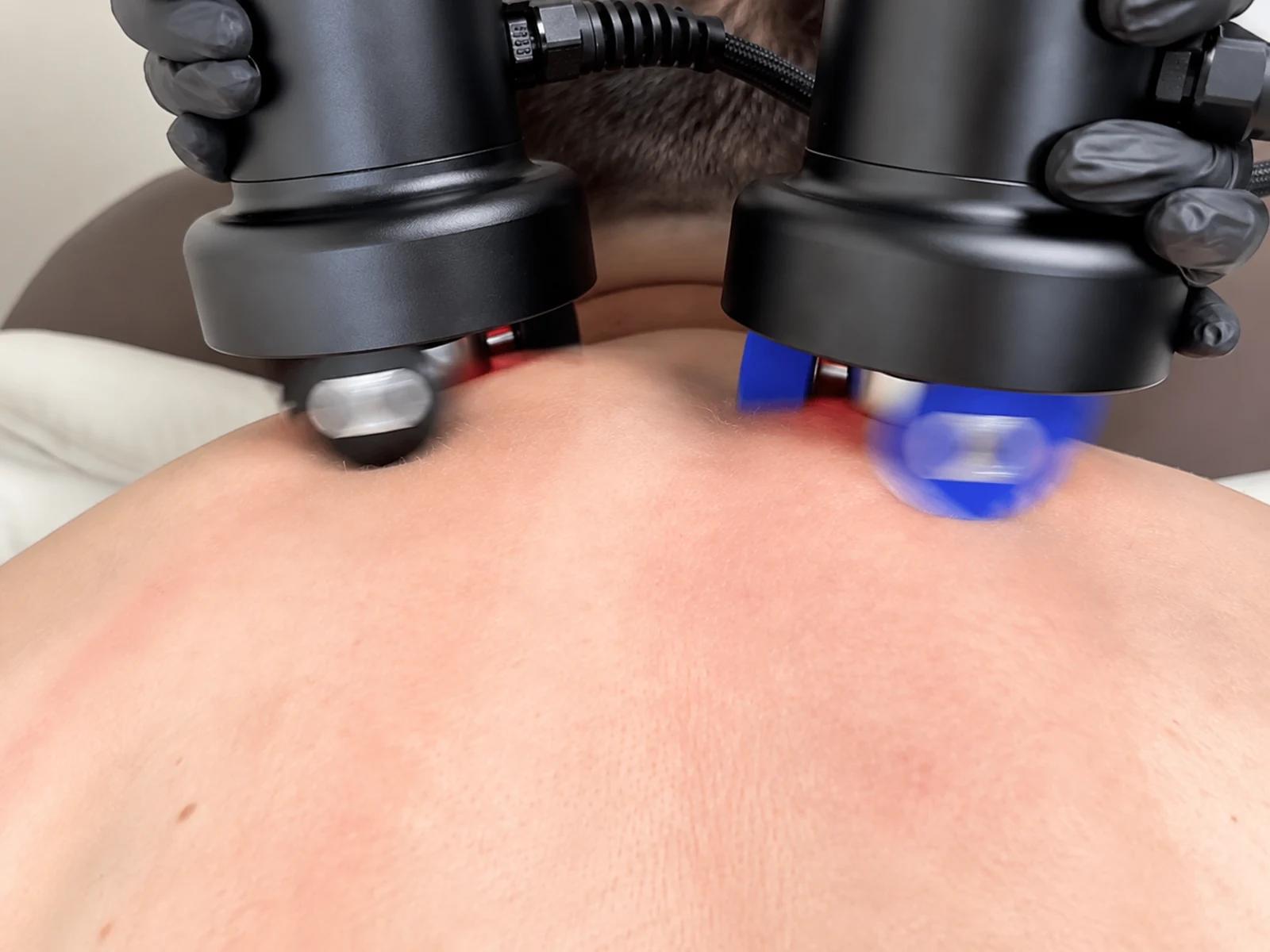

Two LX-CB-002 non-vacuum body handpieces operating across the upper back with their rollers in direct skin contact

A1 + A2 Large Five-Roller · B1 + B2 Medium Three-Roller

Layered Non-Vacuum Body Programs

Use the two large and two medium non-vacuum handpieces to move from broader-area contact to more focused mechanical work across the torso and limbs.

Creates rhythmic multi-point stimulation through rotating star heads
Supports localized fat-deposit and nodular-tissue programs
Supports fascial-mobility, circulation and contouring-focused workflows

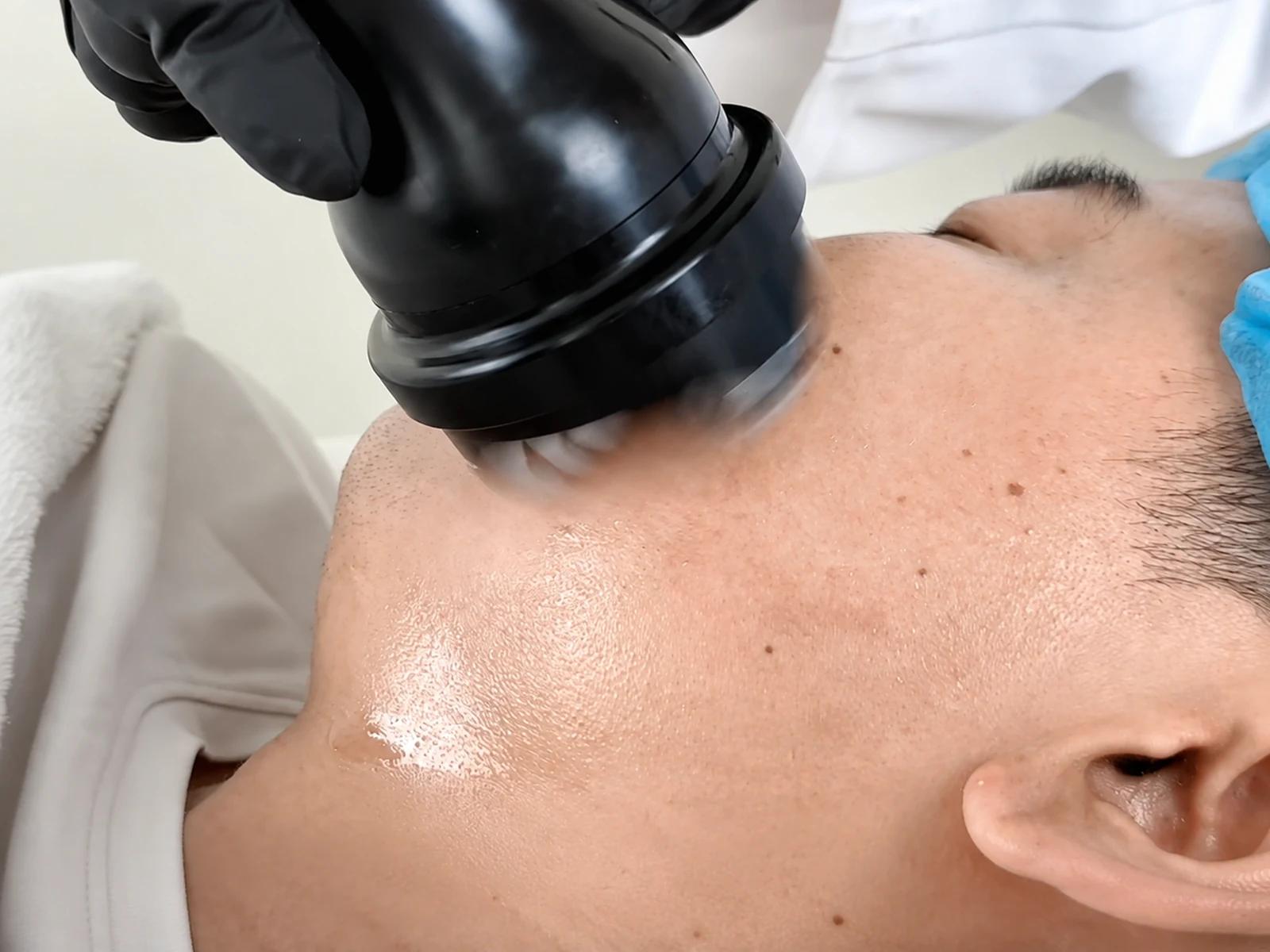

Dedicated LX-CB-002 facial handpiece in direct contact with the cheek during treatment

C1 Face Mode · Face · Jawline · Neck

Facial & Precision-Area Workflows

Use the dedicated C1 handpiece for smaller contours, with Face Lifting, Lymphatic Drainage and Skin Smoothing programs available from the Face workflow.

Adapts the rotating-roller workflow to smaller treatment contours
Keeps facial operation mapped to its own C1 channel
Extends the same platform from broad body areas to focused face-and-neck programs

Standard Seven-Handpiece Hybrid Configuration

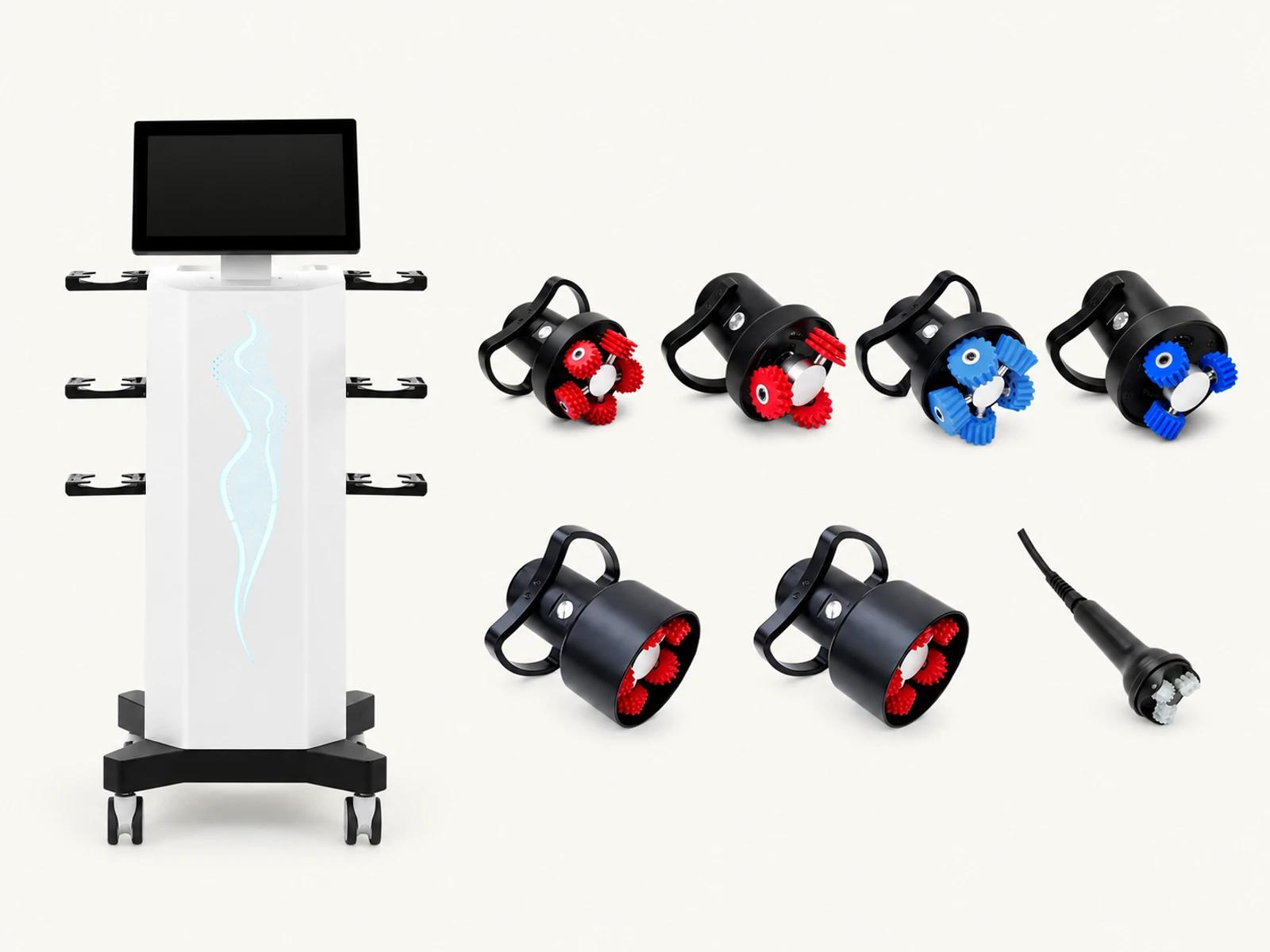

LX-CB-002 standard configuration with one bare floor-standing console, two large vacuum five-roller handpieces, two non-vacuum large five-roller handpieces, two non-vacuum medium three-roller handpieces and one facial handpiece — Complete standard configuration shown with one bare main console and all seven supplied work handpieces: two vacuum large five-roller, two non-vacuum large five-roller, two non-vacuum medium three-roller and one facial handpiece.

Included with the standard system

Main Machine ×1: white floor-standing console with a 15.6-inch touchscreen and seven label-matched handpiece connections.
Large Vacuum 5-Roller Handpieces ×2: dedicated D1 and D2 vacuum-suction channels with separate Vacuum and Release settings.
Non-Vacuum Large 5-Roller Handpieces ×2: A1 Gentle Large and A2 Intensive Large.
Non-Vacuum Medium 3-Roller Handpieces ×2: B1 Gentle Medium and B2 Intensive Medium.
Facial Handpiece ×1: dedicated C1 Face Mode handpiece for smaller treatment contours.
Routine Accessories: power cord ×1, tool kit ×1 and replaceable metal shaft rollers ×5.

Built for Distributor and Private-Label Programs

OEM, ODM & Private Label: Build the LX-CB-002 into a distributor or brand program for the approved target market.
Logo & Documentation: Confirm logo placement, product-document language and required brand information before production.
Market Configuration: Review destination voltage, interface-language requirements and the final handpiece presentation during quotation.
Packaging Review: Align carton artwork and product information with the approved order scope.
MOQ is evaluated according to the requested modifications.

Core Specifications

Model	LX-CB-002
Technology	Mechanical roller massage with dual-channel vacuum suction
Handpieces	7 — two large vacuum 5-roller, two non-vacuum large 5-roller, two non-vacuum medium 3-roller and one facial
Non-Vacuum Body Channels	A1 Gentle Large, A2 Intensive Large, B1 Gentle Medium and B2 Intensive Medium
Facial Channel	C1 Face Mode
Vacuum Channels	D1 and D2 with independent parameter controls
Interface Modes	Body, Face, Recovery, Manual and Vacuum
Body Programs	Body Contouring, Anti-Cellulite, Lymphatic Drainage and Firming & Tightening
Adjustable Controls	Treatment time, energy, light and CW/CCW rotation; Vacuum and Release for D1/D2
Rotation Speed	Max. 1400 RPM, adjustable
Screen Size	15.6 inches
Power	600 W
Voltage	110–220 V, 50/60 Hz
Handpiece Carton	70 × 56 × 40 cm; weight 35 kg
Main Unit Carton	57 × 54 × 107 cm; weight 47 kg
