Controlled Vacuum Lift, Then Rotary Massage
The D1 handpiece draws the selected tissue into the applicator before its roller assembly begins bidirectional rotary massage.
Vacuum & Roller
Browse Vacuum & Roller6-Handpiece Mechanical Wave & Vacuum Body Contouring Machine
Model: LX-CB-007
A professional six-handpiece platform combining five mechanical-wave handpieces with one dedicated D1 negative-pressure applicator. Controlled vacuum lifts the target tissue into the chamber before bidirectional rotary massage for a more engaged face-to-body workflow.
- Vacuum-Lift Rotary Massage: Pair controlled tissue lift with rotating roller contact in one dedicated D1 workflow
- Five Mechanical-Wave Handpieces: Move from large-area surface and deep programs to medium and facial work
- Six-Channel Control: Adjust time, energy, light, rotation direction, vacuum and release from the 8-inch interface
Request a Quote
Distributor, OEM, ODM and private-label enquiries.
On this page
Vacuum-Lift Massage Meets Layered Mechanical-Wave Control
The LX-CB-007 is a six-handpiece floor-standing platform built around one defining difference: its dedicated D1 handpiece combines controlled negative pressure with rotary massage. Five additional mechanical-wave handpieces cover large, medium and facial treatment formats from the same system.
How the Technology Works — The D1 applicator first uses controlled vacuum to lift the selected skin and subcutaneous tissue into the applicator. Its roller assembly then applies bidirectional rotary massage, with suction and release adjusted from the interface for the planned body-care workflow.
The five mechanical-wave handpieces use rotating star-shaped heads. Each star head has 16 contact points; their angled, rhythmic movement creates multi-point mechanical stimulation and a wave-like action across the contacted tissue. Large, medium and facial formats provide progressively more focused coverage.
Six independently selected channels organize the system as A1 large surface, A2 medium surface, B1 large deep, B2 medium deep, C1 facial and D1 vacuum. The touchscreen brings time, speed, handpiece light, clockwise or counterclockwise rotation, vacuum and release controls into one operating workflow.
Vacuum-Lift Massage Sets This Six-Handpiece System Apart
Five Mechanical-Wave Handpieces
Two large, two medium and one facial handpiece provide surface, deeper and precision-area mechanical formats.
CW / CCW Rotation
Choose clockwise or counterclockwise roller movement directly from the interface.
Adjustable Vacuum and Release
Set the D1 suction and release response from the operating interface according to the selected workflow.
Six Independently Selected Channels
Select A1, A2, B1, B2, C1 or D1 from one touchscreen according to the connected handpiece and planned program.
Direct Session Settings
Adjust treatment time, operating speed, handpiece light and the controls available for the selected channel.
Six Channels with a Dedicated D1 Vacuum Mode
The 8-inch interface keeps all five mechanical-wave channels and the vacuum channel visible in one clear operating workflow.
- A1 / A2 — Large and medium surface-treatment channels.
- B1 / B2 — Large and medium deep-treatment channels.
- C1 — Dedicated facial-treatment channel.
- D1 — Dedicated Vacuum Mode channel.
- Session controls — Set time, energy, light, rotation direction, Vacuum and Release.
- Massage response — Switch between Regular and Soft Massage modes.
Vacuum-Enhanced Body Programs with Face-to-Body Coverage
D1 Vacuum Mode · Abdomen · Waist · Buttocks · Thighs · Legs
D1 Vacuum-Lift Contouring & Drainage

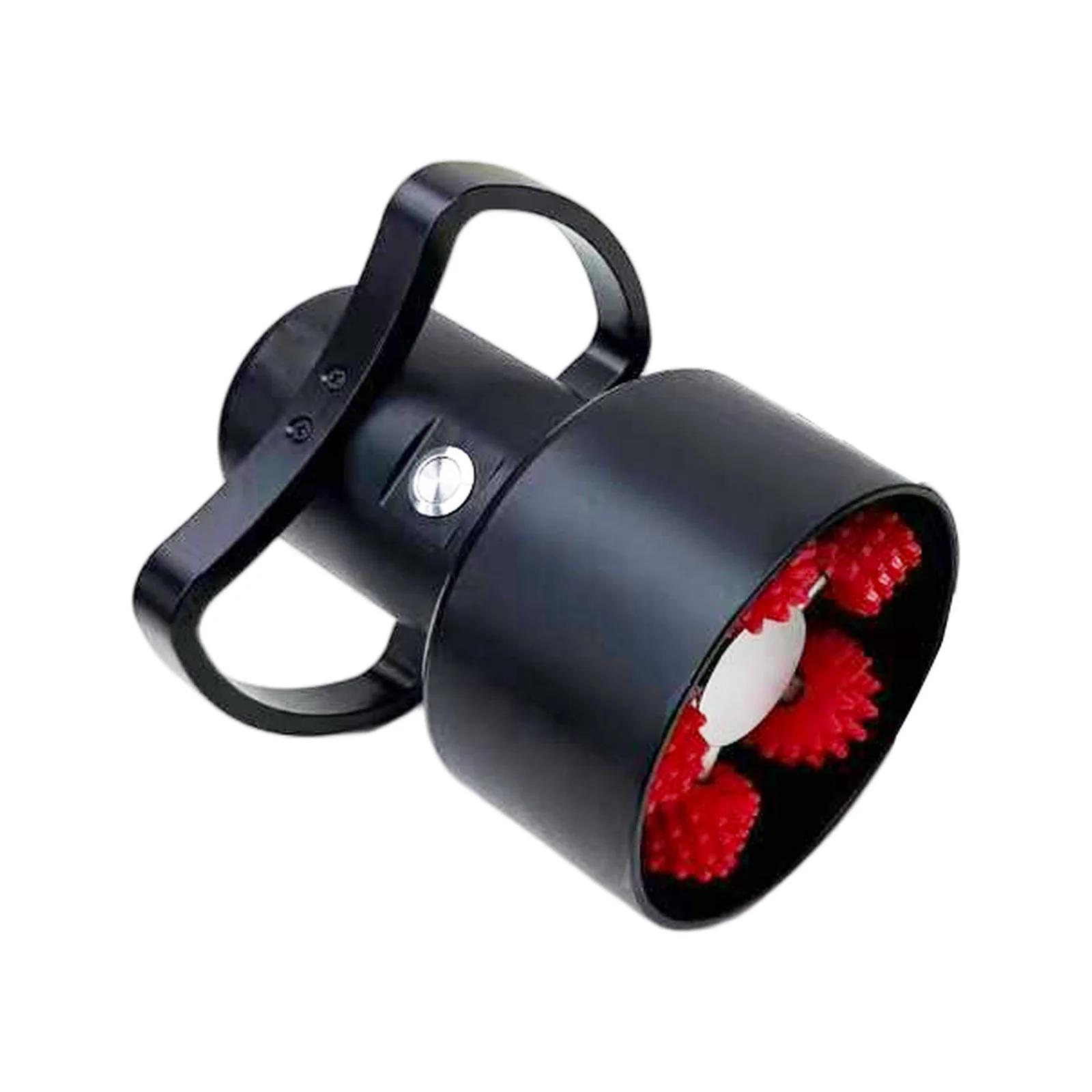

The dedicated D1 handpiece first uses controlled negative pressure to draw skin and subcutaneous tissue into the chamber, then applies bidirectional rotary massage through its internal rollers. Adjust Vacuum, Release and CW/CCW rotation from the same interface for the selected body-care workflow.
- Supports drainage, edema-reduction and tissue-mobility programs
- Keeps the vacuum-led workflow distinct from the five mechanical-wave channels
A1 / A2 Surface + B1 / B2 Deep · Large Five-Head + Medium Three-Head
Layered Mechanical-Wave Body Programs
Use the four body-format mechanical-wave handpieces to move from broad-area contact to more focused surface and deeper work across the torso and limbs.
- Creates dense multi-point mechanical stimulation through rotating star heads
- Moves from large-format coverage to more focused medium-format work
- Supports localized fat-deposit and nodular-tissue breakdown
- Supports fascial-mobility, circulation and contouring-focused programs
C1 Face Mode · Face · Jawline · Double Chin · Neck
Facial & Precision-Area Workflows
Use the dedicated C1 facial handpiece for smaller contours, with time, operating intensity, light and rotation direction adjusted from the same six-channel interface.
- Adapts the mechanical-wave principle to smaller treatment contours
- Supports facial drainage and firming-focused professional programs
- Keeps facial operation mapped to its own C1 channel
- Extends the same platform from broad body areas to precision-area work

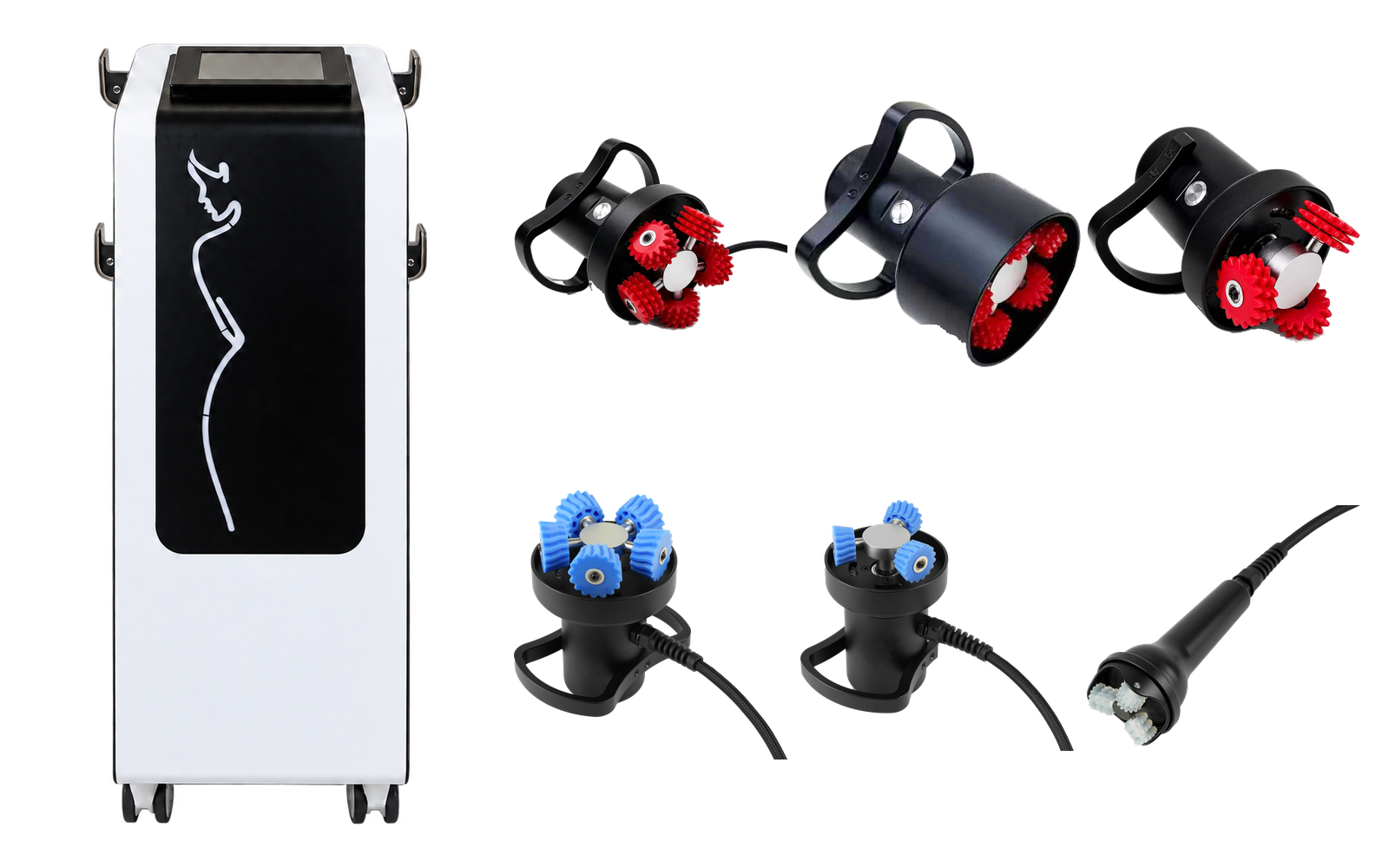

Standard Six-Handpiece Configuration
Included with the standard system

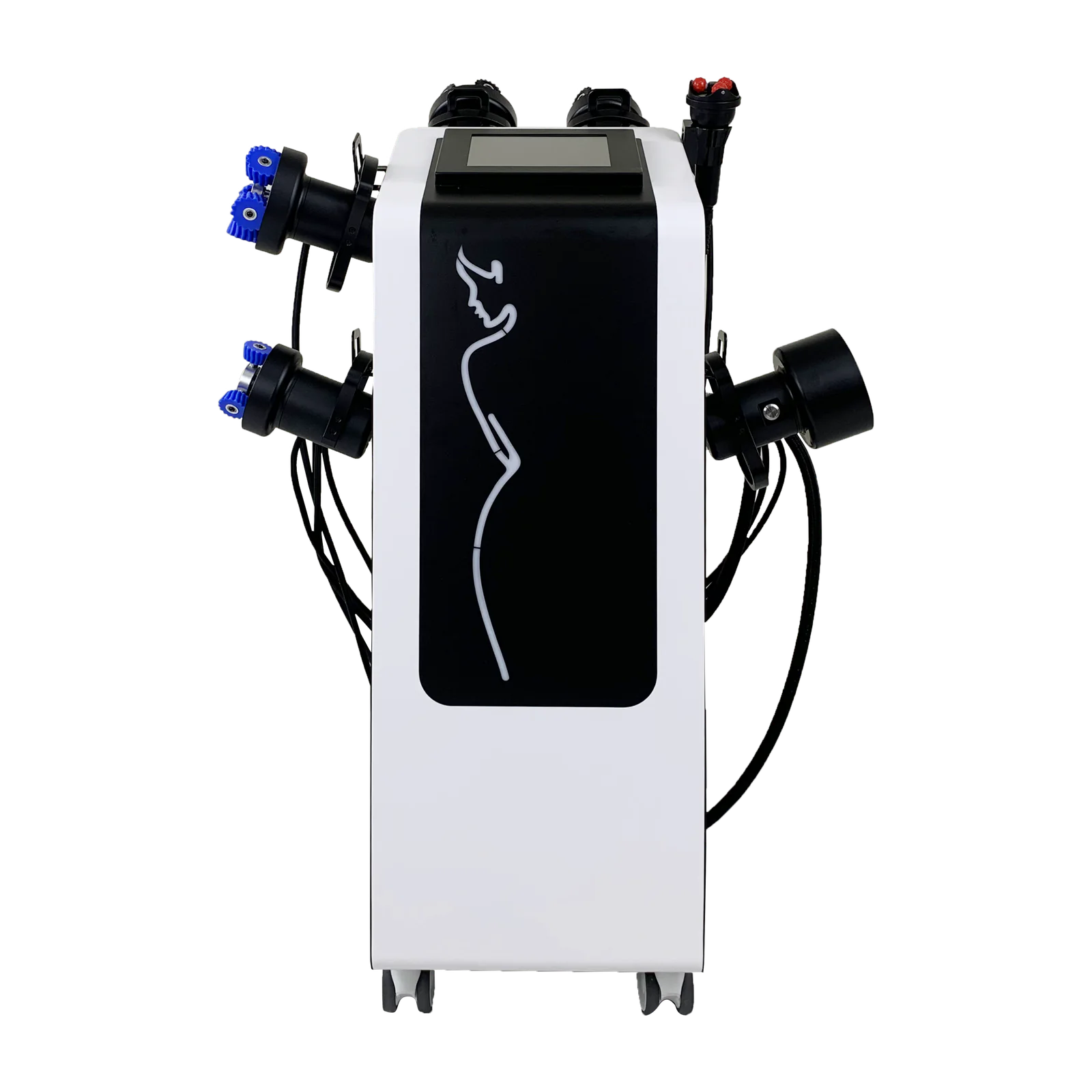

- Main Machine ×1: floor-standing console with an 8-inch touchscreen and six operating channels.

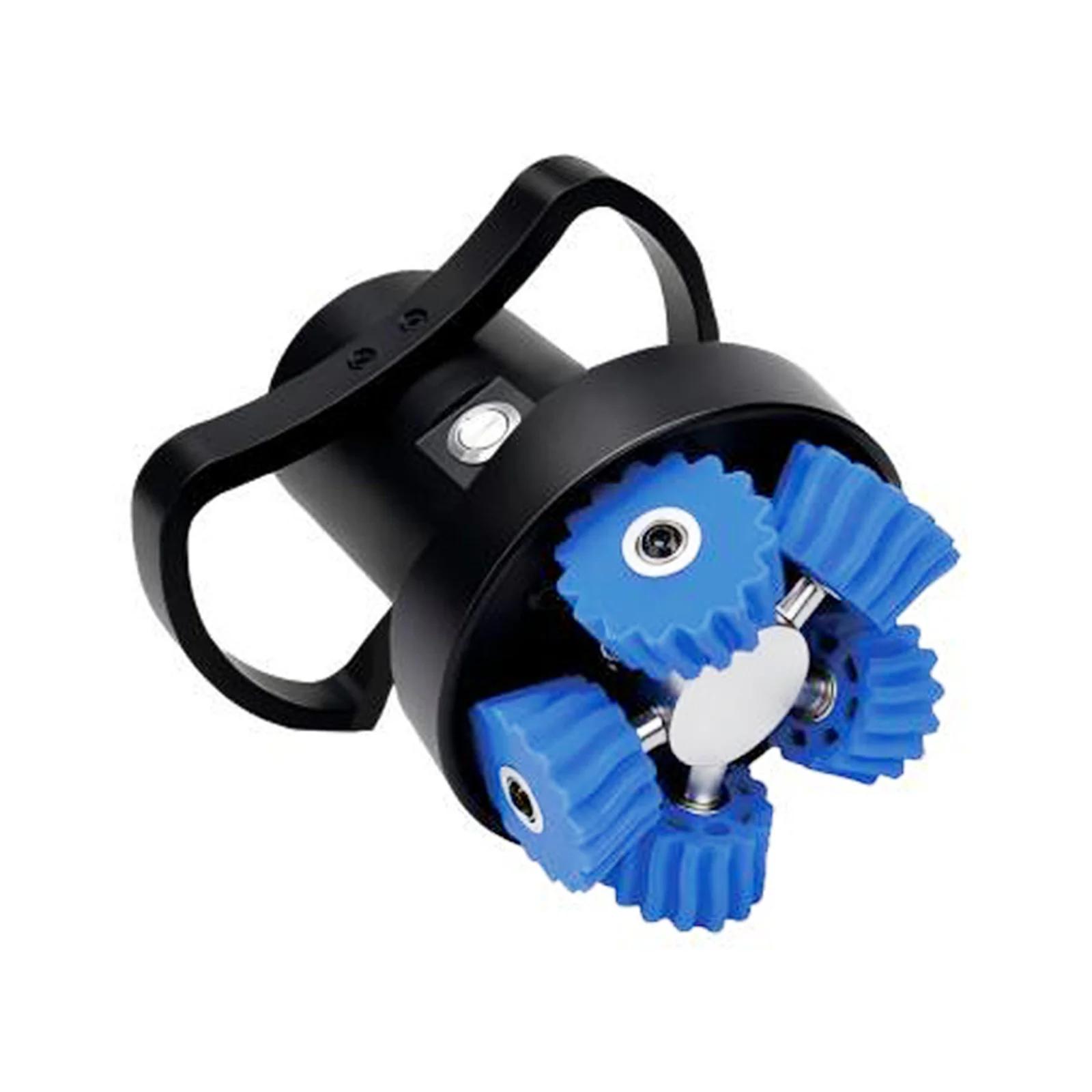

- Large Five-Head Handpieces ×2: one A1 surface-treatment handpiece and one B1 deep-treatment handpiece.
- Medium Three-Head Handpieces ×2: one A2 surface-treatment handpiece and one B2 deep-treatment handpiece.

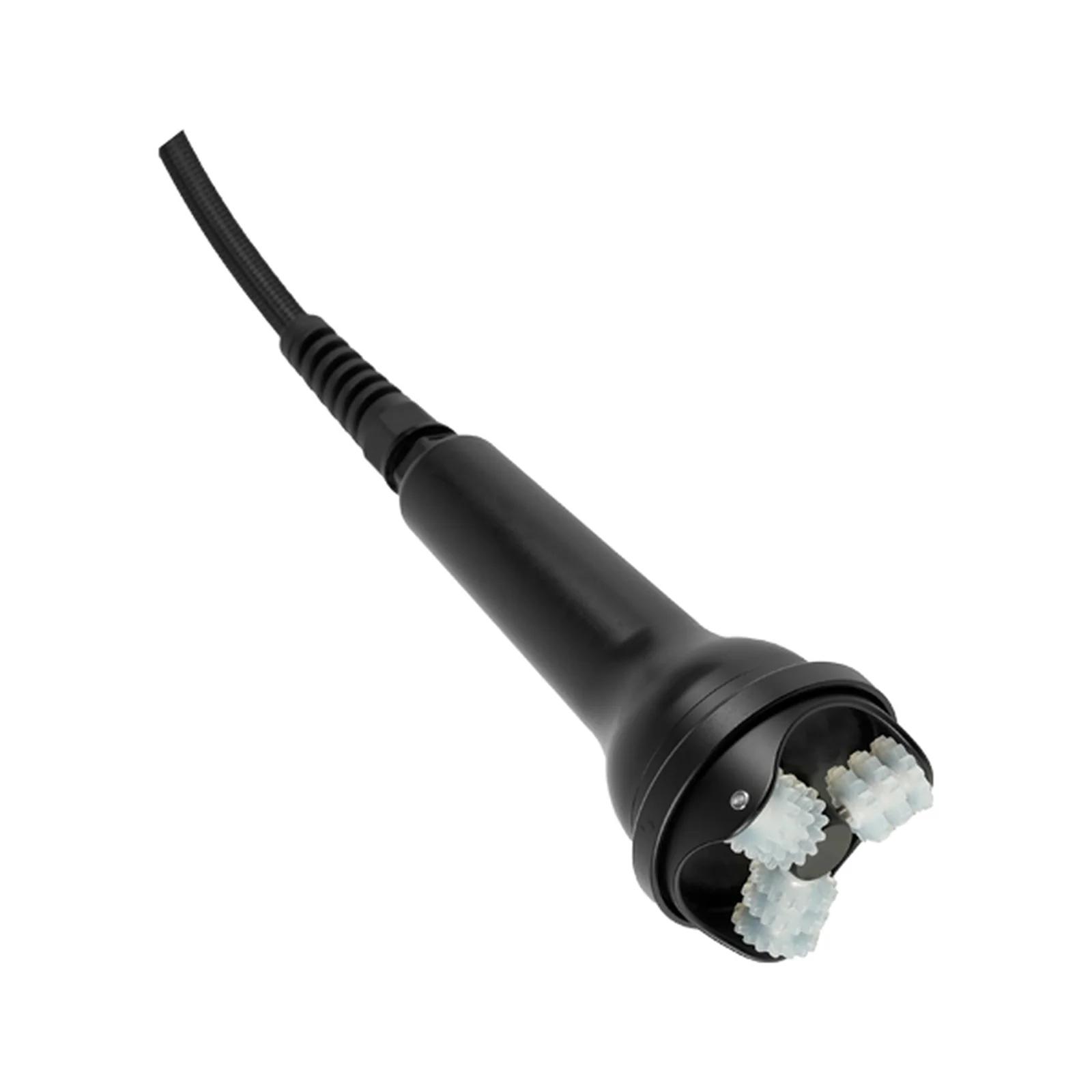

- Facial Handpiece ×1: dedicated C1 face-mode handpiece for smaller treatment contours.
- D1 Negative-Pressure Handpiece ×1: dedicated vacuum-lift and rotary-massage applicator.
- Routine Accessories: power cord ×1, tool kit ×1 and replaceable metal shaft rollers ×4.
Built for Distributor and Private-Label Programs
- OEM, ODM & Private Label: Build the LX-CB-007 into a differentiated mechanical-wave and vacuum product line for the approved target market.
- Logo & Documentation: Confirm logo placement, product-document language and required brand information before production.
- Interface Review: Discuss approved interface-language and brand-presentation requirements for the six-channel touchscreen.
- Market Configuration: Confirm destination voltage, final handpiece presentation and packaging requirements during quotation.
- MOQ is evaluated according to the requested modifications.
Core Specifications
| Model | LX-CB-007 |
|---|---|
| Technology | Mechanical wave massage with controlled negative pressure and rotary roller massage |
| Handpieces | 6 — two large, two medium, one facial and one D1 vacuum handpiece |
| Operating Channels | A1 large surface, A2 medium surface, B1 large deep, B2 medium deep, C1 facial and D1 vacuum |
| Channel Control | Six channels with independent selection |
| Massage Modes | Regular Mode and Soft Massage Mode |
| Adjustable Controls | Treatment time, speed, handpiece light, CW/CCW rotation, vacuum and release |
| Rotation Speed | Max. 1400 RPM, adjustable |
| Screen Size | 8 inches |
| Power | 600 W |
| Voltage | 110–220 V, 50/60 Hz |
| Carton Dimensions | 50 × 66 × 102 cm |
| Carton Gross Weight | 38 kg |
