Adjustable Treatment Depth
Set depths from 0.5 to 2.5 mm for face programs and up to 7 mm for body programs.
Microneedling
Browse MicroneedlingProfessional Fractional RF Microneedling System with Cold Hammer
Model: LX-FM-010
A professional floor-standing fractional RF microneedling system for face and body protocols, combining adjustable depth up to 7 mm, body-only multi-level Burst mode, four tip formats and post-treatment cooling.
- Face and Body Treatment Control: Select the treatment program, compatible tip and working depth for targeted facial or broader body protocols
- Fixed or Multi-Level Delivery: Use traditional fixed-depth treatment for face and body, with Burst mode available for deeper body programs
- Clinic-Ready Workflow: Set time, RF energy, depth and shot mode, display the active tip and monitor the accumulated shot count
Request a Quote
Distributor, OEM, ODM and private-label enquiries.
On this page
Fractional RF Microneedling for Face and Body

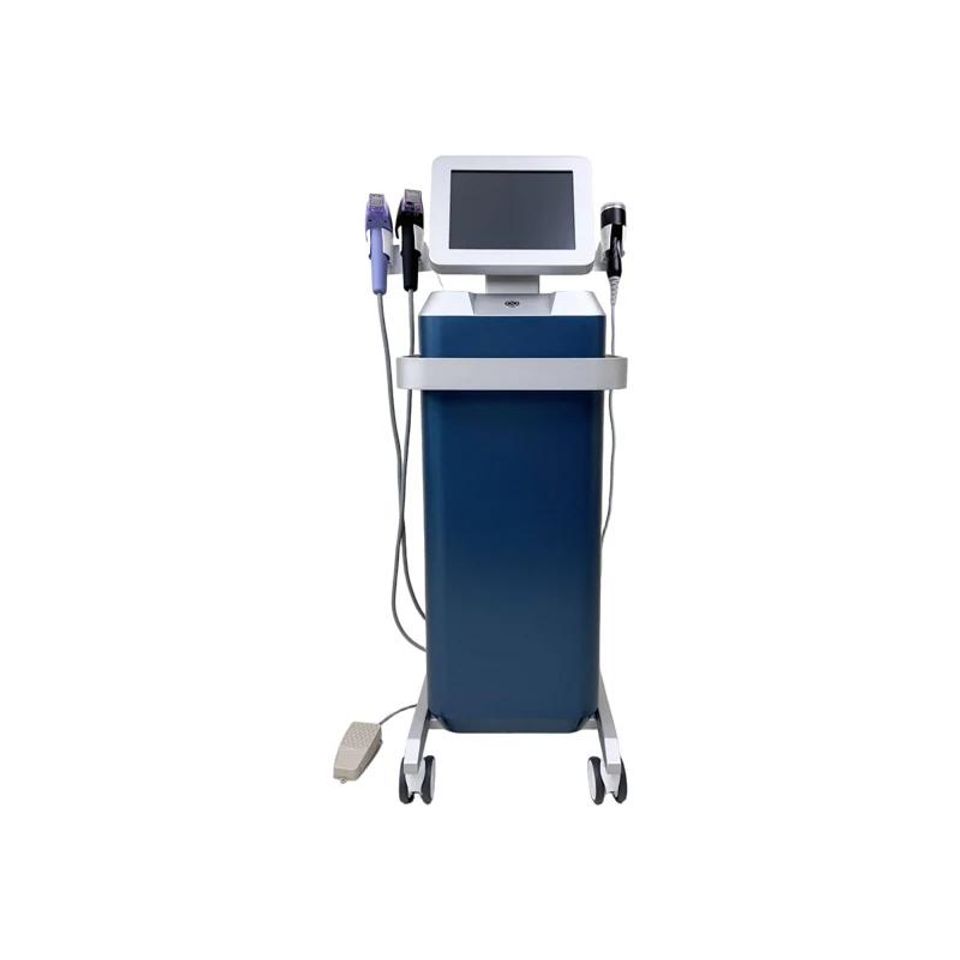

The LX-FM-010 combines adjustable fractional RF microneedling, four interchangeable tip formats and a cold hammer in one floor-standing professional platform. It supports structured facial, face-and-neck and body programs from a single touchscreen workflow.
Insulated microneedles enter the tissue to the selected depth and release RF energy through their exposed tips. This concentrates thermal energy at the programmed treatment level while leaving untreated tissue between the fractional contact points.
Operators select the treatment program, tip, time, RF energy, depth and shot mode from the touchscreen. Face programs use traditional fixed-depth delivery up to 2.5 mm. Body programs extend to 7 mm and also provide multi-level Burst delivery.
The Cold Hammer, also referred to as an Ice Hammer, uses conductive cooling to lower the skin's surface temperature after treatment. This cooling step provides a refreshing sensation and helps soothe temporary redness, swelling and discomfort for a calmer, more comfortable finish.
Precise Control from 0.5 to 7 mm
Traditional and Burst Delivery
Use traditional fixed-depth operation for face and body. Multi-level Burst mode is available for body programs.
Face Programs up to 2.5 mm
Face programs use 12P or 24P tips with time, RF energy, depth, shot mode, shot count and active-tip controls. Burst mode is not available in the face program.
Four Tip Formats
Select 12P, 24P, 40P or Nano according to the treatment area and selected program.
Controlled Shot Operation
Choose single-shot or double-shot delivery, view the active tip and monitor the accumulated shot count.
Body Programs up to 7 mm
Body programs support all four tip formats, with 24P and 40P commonly selected. Traditional and multi-level Burst delivery are available with the full set of treatment controls.
Face Programs up to 2.5 mm
The face interface keeps the treatment controls together while limiting the available depth and tip selection for facial protocols.
- Treatment controls — Set time, RF energy and needle depth up to 2.5 mm.
- Traditional mode — Face programs use fixed-depth delivery without Burst mode.
- Shot delivery — Select one or two shots per activation.
- Session tracking — View the accumulated shot count and the currently selected tip.
- Compatible tips — Select 12P or 24P for face programs.
Body Programs up to 7 mm
The body interface extends the available treatment depth and adds multi-level Burst delivery for deeper protocols.
- Treatment controls — Set time, RF energy and needle depth up to 7 mm.
- Traditional or Burst — Select fixed-depth delivery or multi-level Burst mode.
- Shot delivery — Select one or two shots per activation.
- Session tracking — View the accumulated shot count and the currently selected tip.
- Compatible tips — All four tip formats are available; 24P and 40P are commonly selected for body protocols.

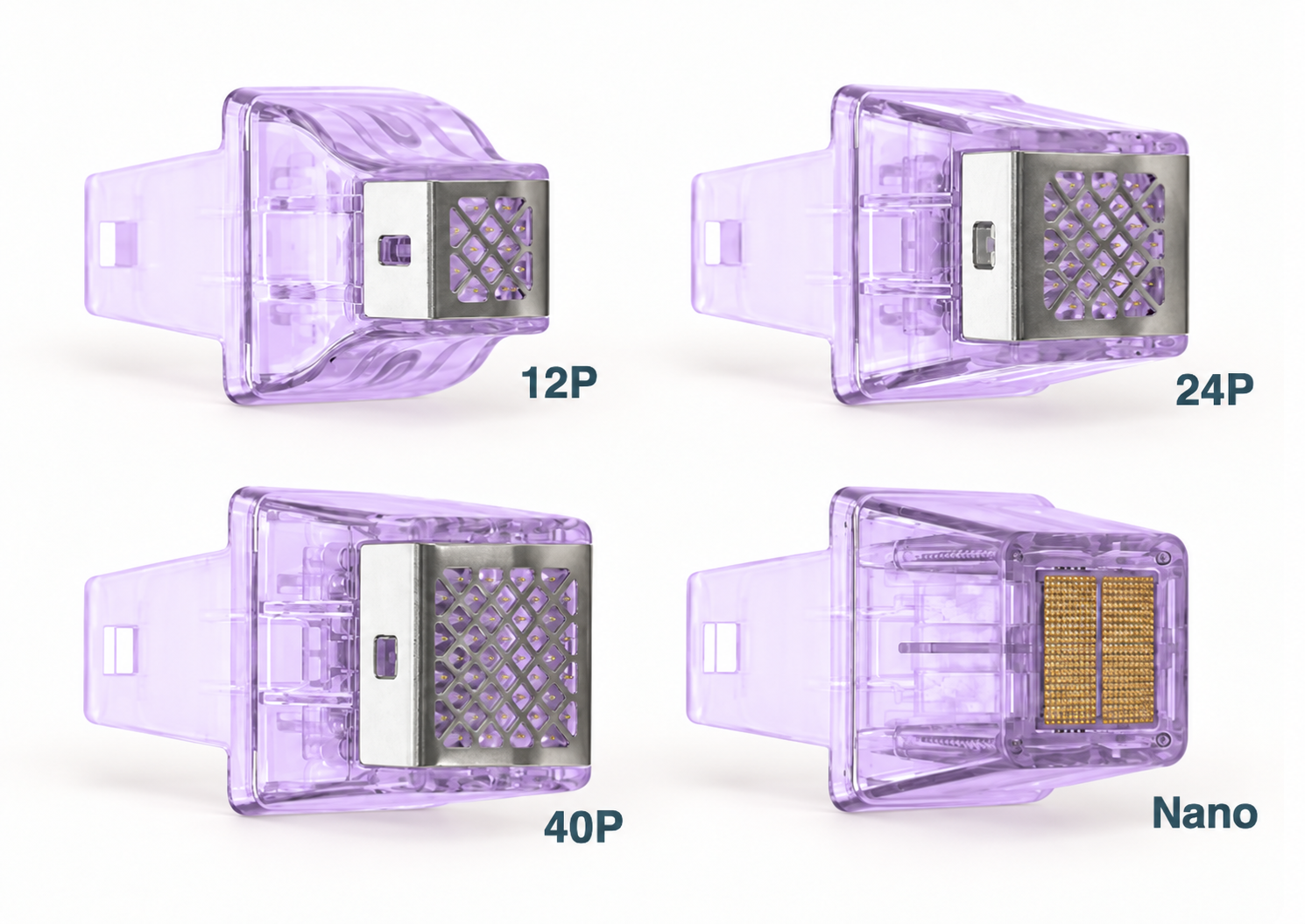

Four Tip Formats for Area-Specific Protocols
Select the cartridge according to the treatment area, target depth and chosen face or body program.
- 12-Pin Tip — For targeted facial areas.
- 24-Pin Tip — For face, neck and selected body protocols.
- 40-Pin Tip — Commonly selected for broader body areas.
- Nano Tip — For superficial facial protocols.
Face, Neck and Body Treatment Applications
Face · Forehead · Eye Area · Nose · Chin · Neck
Face and Neck Programs
Use 12P or 24P tips with traditional fixed-depth delivery up to 2.5 mm for targeted facial and face-and-neck workflows.
- Supports protocols addressing the appearance of fine lines and visible wrinkles
- Helps refine uneven-looking texture and enlarged-looking pores
- Supports programs for visible acne marks and scars
- Supports firmer-looking skin and facial rejuvenation workflows
Abdomen · Upper Arms · Thighs · Other Selected Body Areas
Deeper Body Programs
Use the selected body program at depths up to 7 mm. Traditional fixed-depth and multi-level Burst delivery are available according to the protocol.
- Supports body programs focused on skin texture and firmness
- Addresses the appearance of stretch marks and cellulite
- Enables controlled treatment across broader body areas
- Commonly pairs 24P or 40P tips with deeper body settings

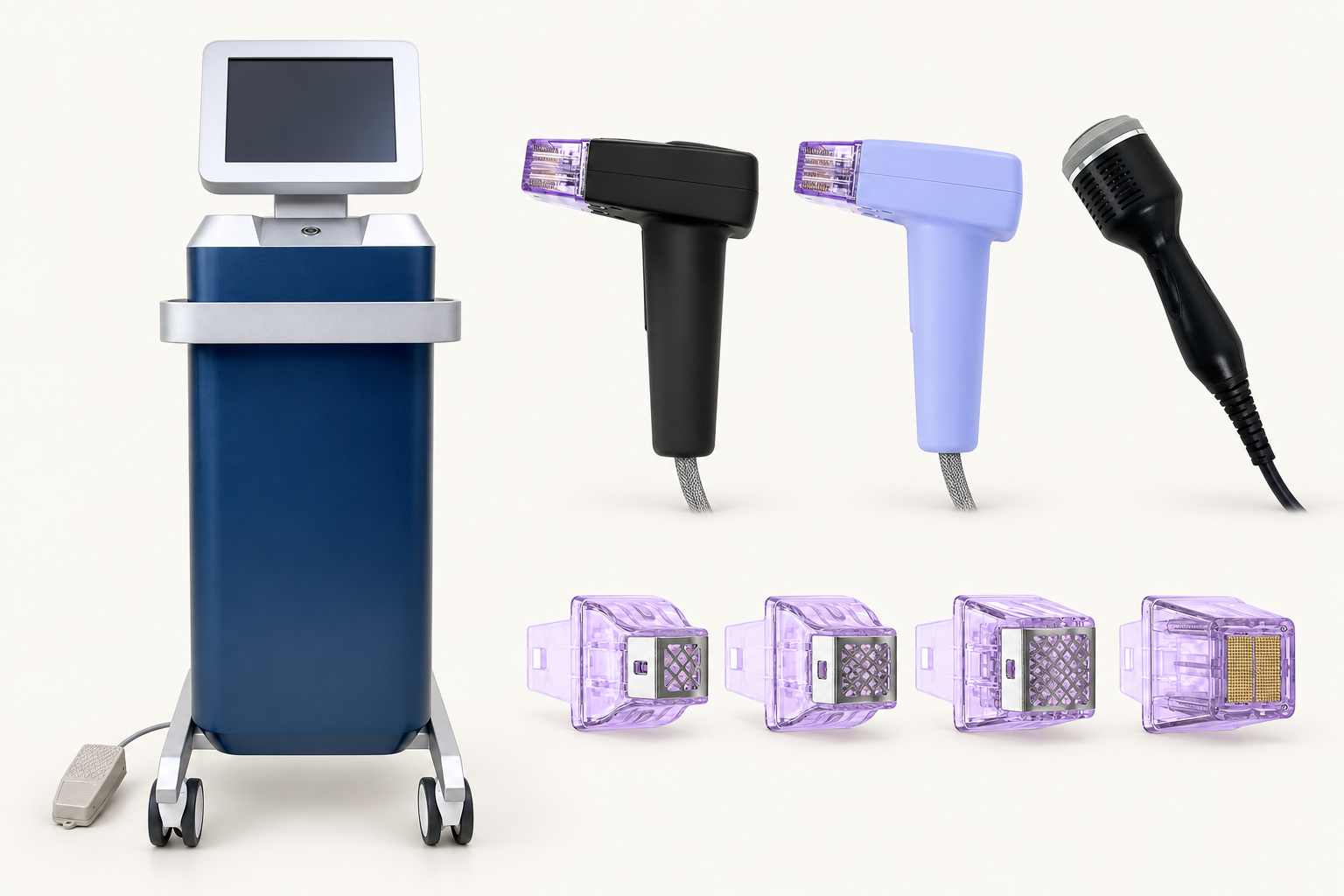

Standard Configuration at a Glance
Included with the standard system
- Main Machine: floor-standing console with a 10.4-inch touchscreen.
- RF Microneedling Applicators: two applicators for tip-based face and body programs.
- Cold Hammer: supports the post-treatment cooling step.
- Four Tip Formats: 12P, 24P, 40P and Nano.
- Foot Pedal: controls shot activation during treatment.
- Digital User Manual: supplied in PDF format.
- Training: free product training is included.
Prepare the System for Your Brand and Market
- Logo & Branding: Add your logo and approved brand elements to the machine and packaging.
- OEM, ODM & Private Label: Discuss a program aligned with your market, channel and order requirements.
- Configuration Review: Confirm voltage, language, tip requirements and supplied accessories before production.
- MOQ is evaluated according to the requested modifications.
Specifications
| Model | LX-FM-010 |
|---|---|
| Technology | Fractional RF microneedling with insulated needles |
| Display | 10.4-inch touchscreen |
| Handpieces | 2 RF microneedling handpieces and 1 cold hammer |
| Tip Formats | 12P, 24P, 40P and Nano |
| Needle Depth | 0.5–7.0 mm |
| Face Program Depth | 0.5–2.5 mm |
| Body Program Depth | 1.0–7.0 mm, depending on the selected tip |
| Face RF Output | 0–200 W |
| Body RF Output | 20–300 W, depending on the selected tip |
| Treatment Time | 1–99 minutes |
| Shot Modes | Single shot and double shot |
| Depth Modes | Traditional fixed depth; multi-level Burst for body programs |
| Voltage | AC 110–230 V ±10%, 50–60 Hz |
| Flight Case Size | 45 × 54 × 113 cm |
