Compact Tabletop Console
Keeps the operating interface within reach while preserving treatment-room floor space.
Microneedling
Browse MicroneedlingCompact Fractional RF Microneedling System with Cold Hammer
Model: LX-FM-011
A compact tabletop fractional RF microneedling system that brings adjustable face and body protocols, four tip formats and post-treatment cooling to space-conscious professional treatment rooms.
- Tabletop Clinical Format: Position the console on a treatment-room worktop without dedicating floor space to a full-height cabinet
- Tip-Led Face and Body Programs: Use either RF applicator with the selected 12P, 24P, 40P or Nano tip; face programs reach 2.5 mm, while body programs extend to 7 mm
- Complete Control from One Console: Set time, RF energy, depth and shot mode, track the active tip and shot count, and use Burst delivery for body programs
Request a Quote
Distributor, OEM, ODM and private-label enquiries.
On this page
Professional RF Microneedling, Sized for the Workstation
The LX-FM-011 places fractional RF microneedling and post-treatment cooling in a compact tabletop format. It is designed for professional treatment rooms that need face and body capability without a floor-standing console.
Insulated microneedles enter the tissue to the selected depth and release RF energy through their exposed tips. Energy is delivered at fractional contact points, concentrating controlled heating at the programmed treatment level while leaving untreated tissue between those points.
The touchscreen brings time, RF energy, depth, shot delivery, active-tip identification and accumulated shot count into one operating workflow. Face programs use traditional fixed-depth delivery up to 2.5 mm. Body programs extend to 7 mm and add multi-level Burst delivery.
The Cold Hammer, also referred to as an Ice Hammer, uses conductive cooling to lower the skin's surface temperature after treatment. It provides a refreshing finishing step and helps soothe temporary redness, swelling and discomfort.
Compact Console, Complete Protocol Control
Body-Only Burst Mode
Traditional fixed-depth delivery is available for face and body; multi-level Burst delivery is reserved for body programs.
Program-Specific Depth
Set face programs from 0.5 to 2.5 mm and body programs up to 7 mm.
Four Cartridge Formats
Use 12P, 24P, 40P or Nano according to the selected program and treatment area.

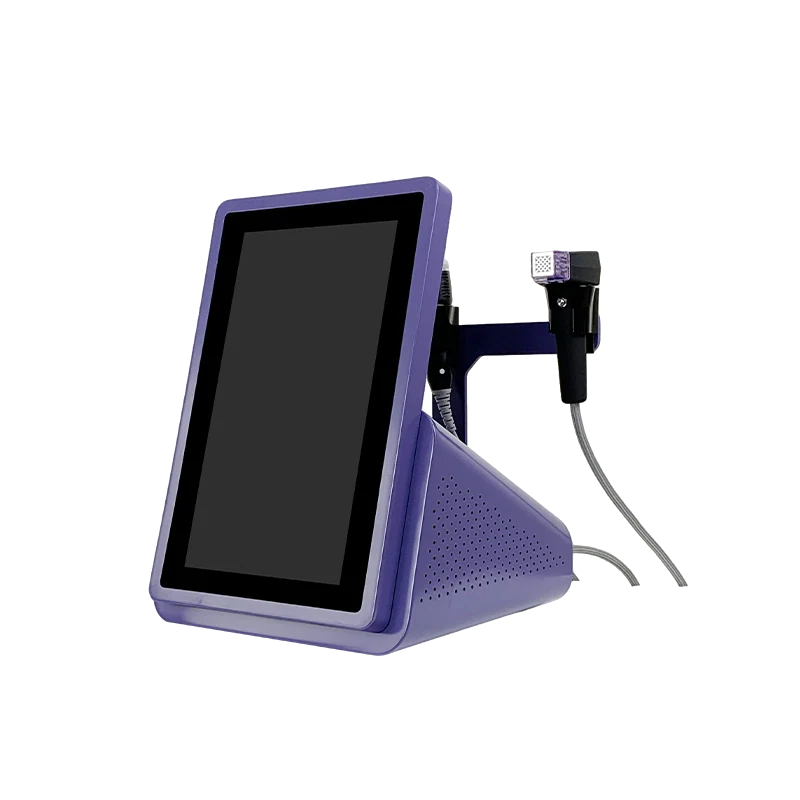

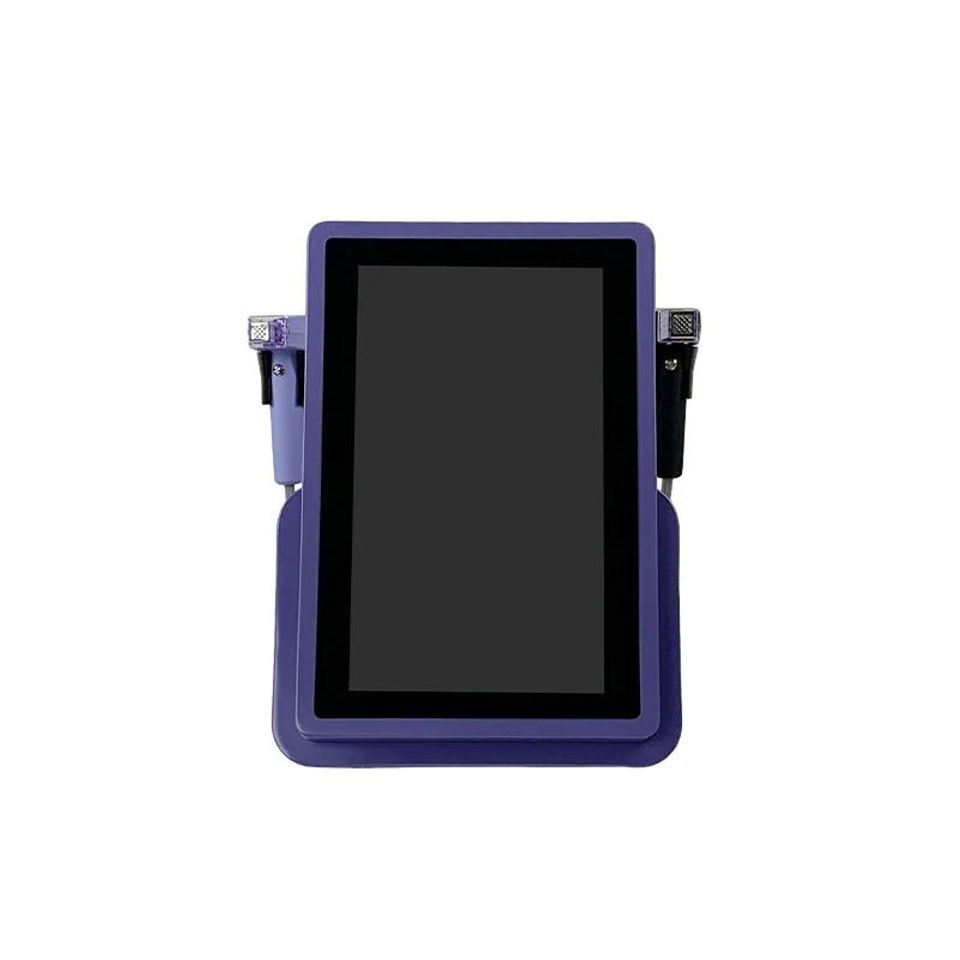

A Smaller-Footprint Console for Focused Treatment Rooms
The tabletop format keeps the machine, operating interface and connected applicators together at the treatment workstation.
- Compact placement — Designed for countertop, trolley or workstation positioning.
- Operator-facing controls — The angled interface keeps protocol settings visible during setup and treatment.
- Shared platform — Both RF applicators work with compatible cartridges selected for the active program.
- Cooling included — The Cold Hammer remains available as the post-treatment finishing step.
Focused Facial Settings Within a 2.5 mm Range
The face interface limits depth and mode selections for controlled facial and face-and-neck workflows.
- Treatment depth — Adjust from 0.5 to 2.5 mm.
- Traditional delivery — Facial programs use fixed-depth operation without Burst mode.
- Shot selection — Choose one or two shots per activation.
- Session monitoring — View treatment time, RF energy, active tip and accumulated shot count.
- Available face selections — Use 12P or 24P according to the selected facial program.
Body Programs Add Greater Depth and Burst Delivery
The body interface opens the deeper operating range and provides an additional multi-level delivery option.
- Treatment depth — Extend the selected body program up to 7 mm.
- Two depth modes — Choose traditional fixed-depth treatment or multi-level Burst delivery.
- Shot selection — Set one or two shots per activation.
- Live session information — Keep time, RF energy, current tip and accumulated shot count visible.
- Tip selection — All four cartridge formats are available in body programs; 24P and 40P are commonly selected.
Match the Cartridge to the Contact Area
Change the cartridge format while continuing to work from the same compact RF platform.
- 12P — Available in face programs for smaller treatment areas.
- 24P — Available across face and body program selections.
- 40P — Available in body programs and commonly selected for broader contact areas.
- Nano — Included as the fourth cartridge format for the appropriate selected program.
Targeted Face-to-Body Programs from One Compact Console
Face · Forehead · Eye Area · Nose · Chin · Neck
Focused Face and Neck Programs
Pair a 12P or 24P cartridge with traditional fixed-depth delivery up to 2.5 mm for controlled facial and face-and-neck protocols.
- Supports programs focused on fine lines and visible wrinkles
- Helps address uneven-looking texture and enlarged-looking pores
- Supports protocols for the appearance of acne marks and scars
- Supports firmer-looking skin and facial rejuvenation workflows
Abdomen · Upper Arms · Thighs · Other Selected Body Areas
Expanded Body Program Range
Move into deeper body settings from the same tabletop console, using traditional or multi-level Burst delivery according to the selected protocol.
- Supports body programs focused on skin texture and firmness
- Addresses the appearance of stretch marks and cellulite
- Provides controlled settings for broader treatment areas
- Commonly pairs 24P or 40P cartridges with deeper body settings

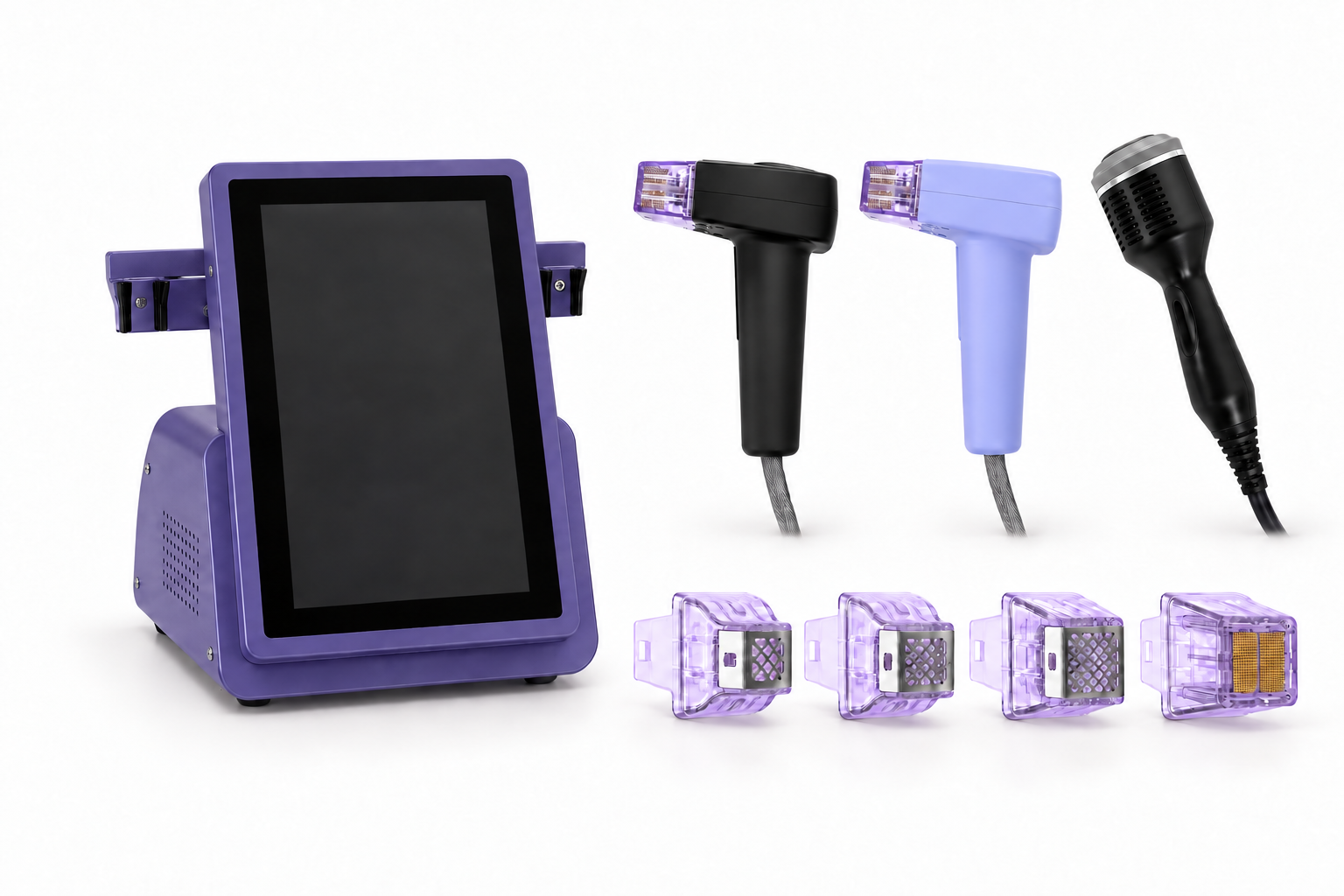

Compact System, Complete Standard Setup
Included with the standard system
- Compact Main Machine ×1: tabletop console with touchscreen treatment controls.
- RF Microneedling Applicators ×2: accept compatible cartridges for tip-based face and body workflows.
- Cold Hammer ×1: supports the post-treatment conductive-cooling step.
- Cartridges ×4: one each of 12P, 24P, 40P and Nano.
- Digital User Manual ×1: supplied in PDF format.
- Free Product Training ×1: included with the standard system.
Adapt the Compact Platform to Your Market
- Logo & Branding: Add your logo and approved brand elements to the compact console and packaging.
- OEM, ODM & Private Label: Discuss a program aligned with your market, sales channel and order requirements.
- Configuration Review: Confirm voltage, language, cartridge requirements and supplied accessories before production.
- MOQ is evaluated according to the requested modifications.
Specifications
| Model | LX-FM-011 |
|---|---|
| System Format | Compact tabletop professional system |
| Technology | Fractional RF microneedling with insulated needles |
| Applicators | 2 RF microneedling applicators and 1 cold hammer |
| Cartridge Formats | 12P, 24P, 40P and Nano |
| Needle Depth | 0.5–7.0 mm |
| Face Program Depth | 0.5–2.5 mm |
| Body Program Depth | 1.0–7.0 mm, depending on the selected tip |
| Face RF Output | 0–200 W |
| Body RF Output | 20–300 W, depending on the selected tip |
| Treatment Time | 1–99 minutes |
| Shot Modes | Single shot and double shot |
| Depth Modes | Traditional fixed depth; multi-level Burst for body programs |
| Voltage | AC 110–230 V ±10%, 50–60 Hz |
