Dynamic Body Sculpting

7-Handpiece Mechanical Wave Body Contouring Machine

Model: LX-CB-006

Build face, body-contouring, drainage-focused and tissue-mobility programs from one professional seven-handpiece mechanical-wave platform. The LX-CB-006 combines three surface-treatment channels, three deep-treatment channels and one dedicated facial channel in one floor-standing system.

Seven-Handpiece Coverage: Match one facial, two large and four medium handpieces to focused face and broad body areas
Surface-to-Deep Workflow: Move from broad tissue preparation to deeper mechanical work and more focused finishing
Independent or Coordinated Control: Run selected channels alone or combine multiple handpieces with adjustable time, energy, light, direction and massage mode

Distributor, OEM, ODM and private-label enquiries.

On this page

One Platform for Layered Face and Body Programs

The LX-CB-006 consolidates face, body-contouring, drainage-focused and tissue-mobility programs into one seven-handpiece floor-standing system. Three surface-treatment channels, three deep-treatment channels and one facial channel let practitioners build a broader service menu without changing platforms.

How the Technology Works — Each star-shaped roller head uses 16 contact points to create dense, rhythmic mechanical stimulation. As the heads rotate, their angle and cadence generate a wave-like action across the treatment area, supporting both surface-focused and deeper tissue workflows.

A Large → Medium → Facial sequence lets the operator progress from broad-area preparation and deeper mechanical work to more focused finishing. Handpiece size, treatment mode and operating intensity can be matched to the selected area and client protocol.

Every channel can be selected independently, while multiple handpieces can also run together for coordinated sessions. The touchscreen keeps time, energy, handpiece light, clockwise or counterclockwise rotation and Regular or Soft Massage Mode within one direct workflow.

Seven Channels. One Coordinated Treatment System.

Seven Selectable Channels

Work with A1–A3 surface channels, B1–B3 deep channels and the dedicated C1 facial channel.

Three Handpiece Formats

Match two large, four medium and one facial handpiece to broad or focused treatment areas.

CW / CCW Rotation

Change the roller direction directly from the touchscreen as the protocol requires.

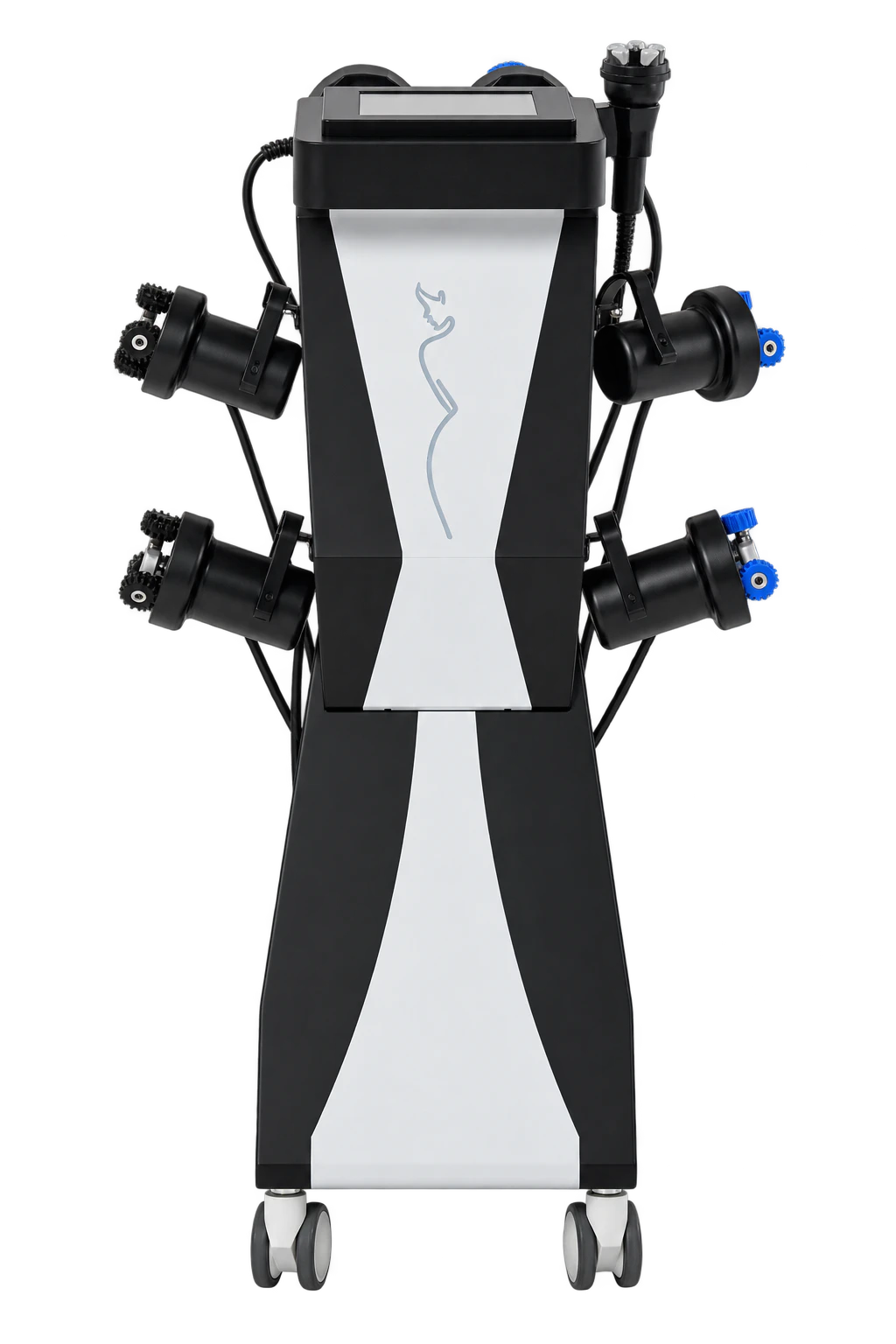

Transparent-background front view of the LX-CB-006 seven-handpiece mechanical-wave body contouring machine

Independent or Simultaneous Operation

Run one selected handpiece or coordinate multiple channels within the same professional workflow.

Up to 1400 RPM

Adjust roller speed to suit the selected area, handpiece format and intended protocol intensity.

Two Massage Modes

Switch between Regular Mode and Soft Massage Mode from one operating interface.

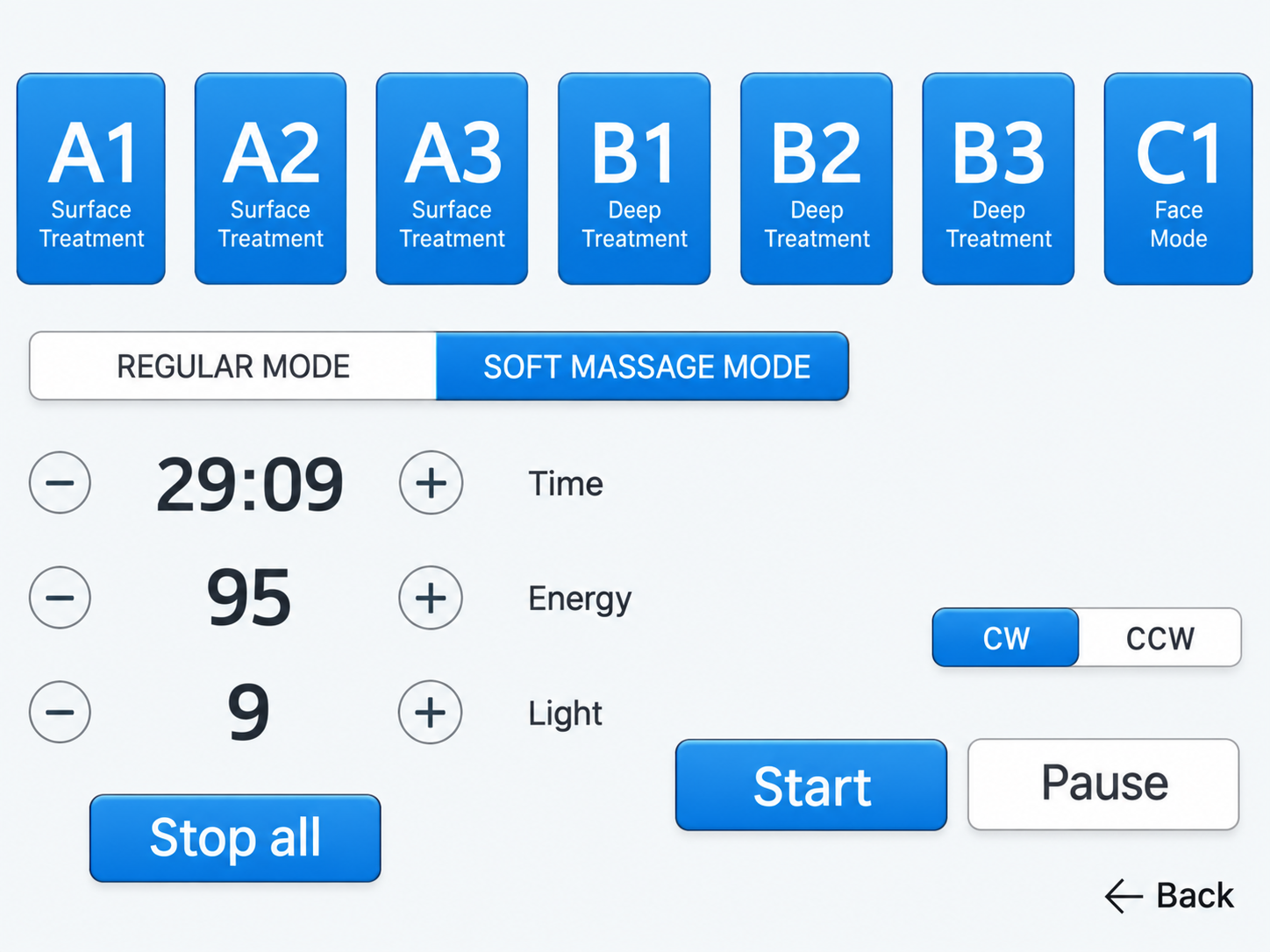

English seven-channel LX-CB-006 interface with surface, deep and face modes plus time, energy, light and rotation controls

Seven Channels, One Coordinated Interface

The 8-inch touchscreen keeps every surface, deep and facial channel visible while giving the operator direct control over the treatment response.

A1–A3 — Three surface-treatment channels.
B1–B3 — Three deep-treatment channels.
C1 — One dedicated facial-treatment channel.
Flexible channel control — Run one channel or coordinate multiple handpieces in the same session.
Direct session settings — Adjust time, energy and handpiece light.
Motion selection — Choose CW or CCW rotation and switch between Regular and Soft Massage modes.

Professional Handpieces for Face-to-Body Programs

Therapist holding both sides of the large five-roller LX-CB-006 handpiece during an upper-back treatment

A1 Surface + B1 Deep · Two Large Five-Roller Handpieces

Body Contouring & Localized Tissue Work

Two large five-roller handpieces map to the A1 surface and B1 deep channels for broad areas including the back, waist, abdomen, hips, buttocks and thighs.

Helps break down localized fat deposits and nodular tissue
Moves from broad surface preparation to deeper mechanical work
Supports circumference reduction, more defined contours and firmer-looking tissue

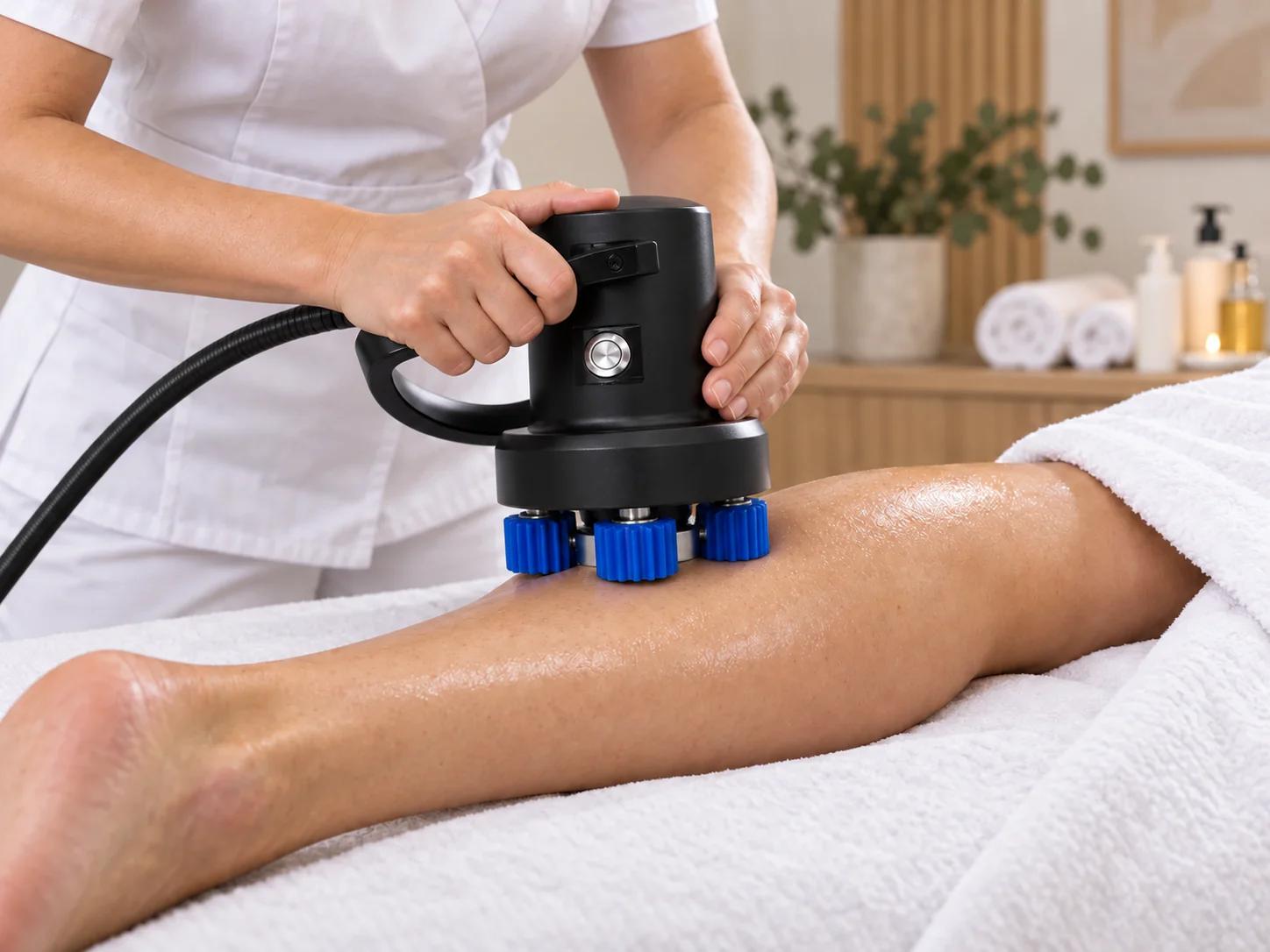

Medium three-roller LX-CB-006 handpiece positioned vertically with its rollers in direct contact with the lower leg

A2–A3 Surface + B2–B3 Deep · Four Medium Three-Roller Handpieces

Drainage, Edema & Fascial-Mobility Programs

Four medium three-roller handpieces provide two surface and two deep channels for more focused work across the thighs, lower legs, arms, waist and other selected zones.

Promotes lymphatic circulation and drainage-focused detox programs
Supports local metabolic activity and helps reduce edema
Supports fascial-adhesion release and improved tissue mobility

Dedicated three-roller LX-CB-006 facial handpiece in direct contact with the cheek during treatment

C1 Face · Dedicated Three-Roller Facial Handpiece

Facial & Precision-Area Workflows

The dedicated C1 three-roller facial handpiece gives controlled contact across the face, neck and shoulders; body channels can be selected separately for professionally assessed postpartum and physiotherapy programs.

Works precisely across smaller facial, neck and shoulder contours
Keeps facial operation separate from the six body channels
Extends the platform to professionally assessed postpartum recovery and physiotherapy workflows

Standard Seven-Handpiece Configuration

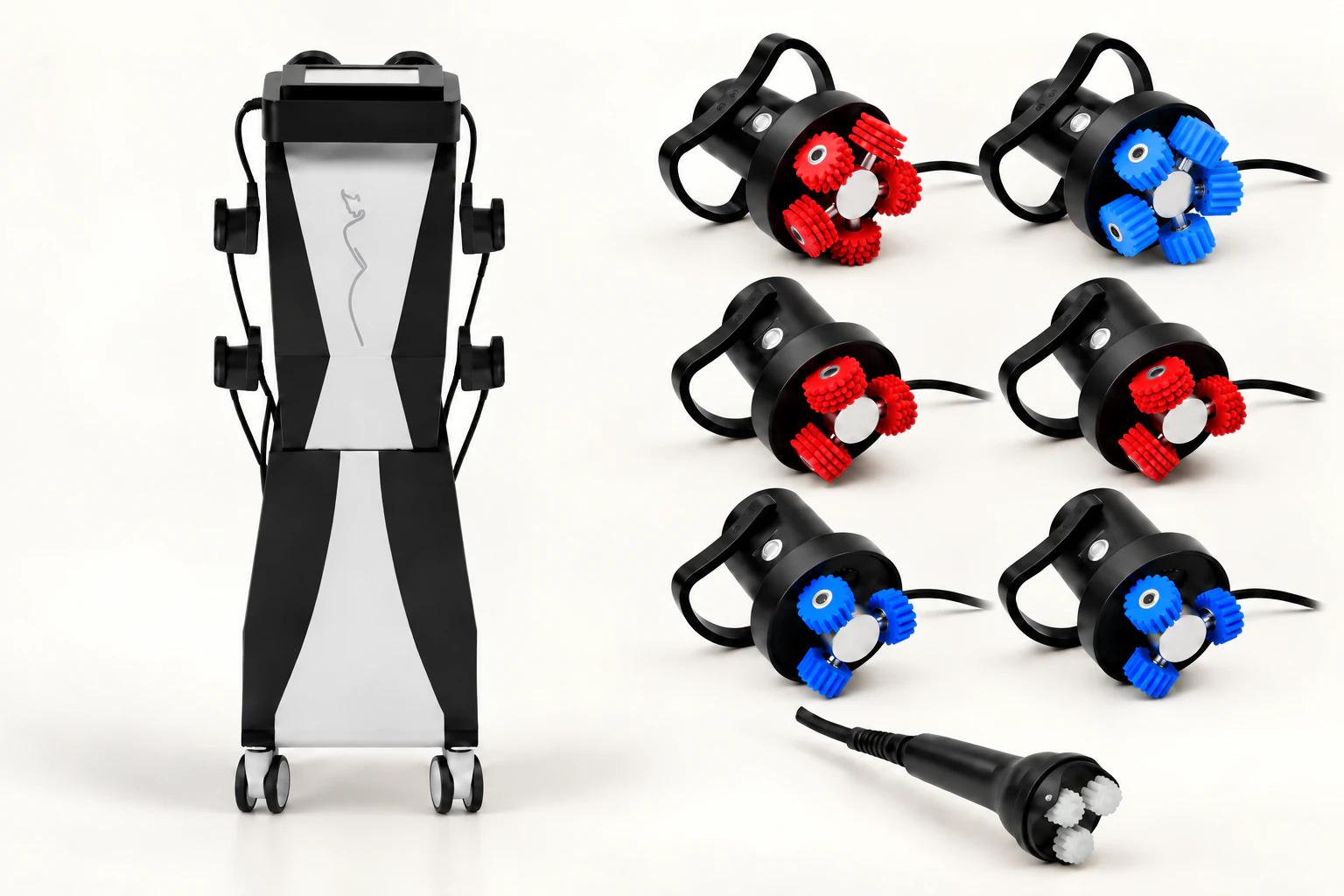

LX-CB-006 standard configuration with one bare main machine, two large body handpieces in two replaceable-core formats, four medium body handpieces in two replaceable-core formats and one facial handpiece — Configuration shown with one main machine and seven work handpieces. The large and medium formats each include two visibly different replaceable-core geometries; core colours may vary.

Included with the standard system

Main Machine ×1: floor-standing console with an 8-inch touchscreen and seven operating channels.
Large Body Handpieces ×2: one A1 surface-treatment handpiece and one B1 deep-treatment handpiece.
Medium Body Handpieces ×4: A2–A3 surface-treatment handpieces and B2–B3 deep-treatment handpieces.
Facial Handpiece ×1: dedicated C1 face-mode handpiece for smaller treatment areas.

Built for Distributor and Private-Label Programs

OEM, ODM & Private Label: Build the LX-CB-006 into a distributor or brand program for the approved target market.
Logo & Documentation: Confirm logo placement, product-document language and required brand information before production.
Market Configuration: Review destination voltage, interface-language requirements and the final handpiece presentation during quotation.
Packaging Review: Align carton artwork and product information with the approved order scope.
MOQ is evaluated according to the requested modifications.

Core Specifications

Model	LX-CB-006
Technology	Mechanical wave massage
Handpieces	7 — one facial, two large and four medium formats
Operating Channels	A1–A3 surface treatment, B1–B3 deep treatment and C1 face mode
Handpiece Control	Individual or simultaneous operation
Massage Modes	Regular Mode and Soft Massage Mode
Adjustable Controls	Treatment time, energy, handpiece light and CW/CCW rotation
Rotation Speed	Max. 1400 RPM, adjustable
Screen Size	8 inches
Power	600 W
Voltage	110–220 V, 50/60 Hz
Net Weight	27.5 kg
Carton Dimensions	102 × 50 × 66 cm
Carton Gross Weight	34.5 kg
